Krones - Robobox SynFlow: First-ever use of robotics for container distribution

2026-05-06 2:19 min Bottles and containers, Palletizing

Krones AGNeutaubling, Germany

Krones has had great success using robotics to group packs into pallet layers for several years. And now, for the first time, the same principle has been adapted to distribute containers as they approach the packer. With Robobox SynFlow, Krones has brought a new, modular system to market that is the first to use ro-botic technology to reliably and gently distribute containers into designated lanes.

Intelligent robotics are the key

Normally, containers are directed into the packer by way of guide systems, which work according to pre-set patterns. However, that can often result in the individual lanes being filled inconsistently, such as when there are gaps in the flow of containers. And so, at some point in a production batch, operators will inevi-tably have to manually intervene in order to keep the packaging process running smoothly right down to the last bottle.

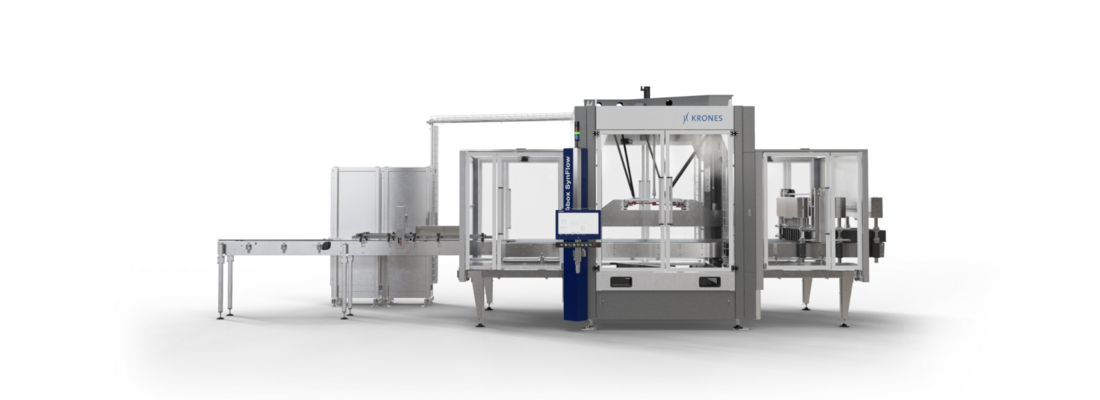

Now, Krones has found a remedy in a completely novel concept for container distribution: the Robobox SynFlow uses a tripod robot to purposefully group the incoming containers. Thanks to intelligent robotics, the system knows exactly how many containers are present in the line and can make on-the-fly adjust-ments to close gaps, thus ensuring that the packer is reliably supplied with just the right number of con-tainers at all times.

Robust delta robot for diverse applications

Robobox SynFlow is available in two designs: The smaller version, for handling up to 55,000 containers per hour, uses a single tripod robot and is appropriate when a single flow of containers is fed into the packer. A second, larger version is suitable for lines with, for instance, two labellers running. With two tripod robots, it can handle up to 105,000 containers per hour. Both set-ups can serve three to nine lanes in the Variopac Pro.

Although the Robobox SynFlow is suitable for all common container types (glass and PET bottles as well as cans) and diameters (from 40 to 125 millilitres), it really shines when it comes to handling specially-shaped containers. Positive-fit precision grippers guide the containers gently, reliably and precisely to their intended position. They can even turn the containers to orient the labels just right within the pack.

As when grouping packs for palletising, the delta robot at work here uses parallel kinematics, with all axes operating simultaneously. The robot model used for the Robobox SynFlow is specially designed to handle the comparatively lightweight containers, moving and grouping them with precision. Here, too, drives are installed at a fixed position so they do not have to be moved along with the rest of the system. The con-veyors within the machine are driven by high-performance permanent-magnet motors, which require up to 50 per cent less power than conventional asynchronous motors.

If there is a problem, such as fallen containers, the intelligent robotics immediately recognise the changed circumstances and trigger an immediate emergency stop to prevent any damage to the Robobox SynFlow or containers. The paddles used for the gripper guides are attached to the tripod by magnets. In the event of a collision, they simply come off so as to prevent mechanical damage to the machine.

Up to 10 per cent space savings in the line

Although the Robobox SynFlow is an entire machine as opposed to the simple guide rails that have been used up until now, the new system still makes for a reduction in the line’s overall footprint. On the smaller version of the machine, intelligent robotics can variably adjust the container speed down to 16 per cent of the actual line speed. This sort of flexibility eliminates the need for conveyors to accomplish the same thing.

And although the larger version of the machine does not provide for variable speed control, it nevertheless requires less space because it does not need an Inliner and so the labellers, distribution system and packer can be directly connected. On average, the Robobox SynFlow can reduce a line’s footprint by around 10 per cent.

www.krones.com
