Gneuss presents innovative new products and further product enhancements at K show 2016
Gneuss to present innovative extrusion technology, fitration technology and measurement technology in Hall 9, Stand 9/A38
MRS-Technology combined with the brand new JUMP system for reprocessing PET waste to high value products
Quick and cost-efficient reprocessing of PET industrial and post-consumer waste
The Gneuss Processing Unit (GPU) has been available for several years now and has proven itself on the reprocessing of bulky PET waste such as post-consumer bottle flake and industrial waste from fibre and film manufacture. This Gneuss Processing Unit consists of the Gneuss MRS extruder with its unmatched devolatilisation and decontamination performance together with the highly-efficient Gneuss Rotary Disc melt filtration systems and the Gneuss Online Viscometer for intelligent dynamic viscosity control, monitoring and logging.
Since the last „K“, Gneuss has continued with its intensive development programme so that the MRS extruder represents an extremely robust, rugged and reliable system especially tailored for recycling applications. A further development is the extension of the venting system with several openings in the barrel. Depending on the application, these additional openings can be in form of several openings in the MRS section of the barrel or venting ports in the barrel of the plasticising section.
Additionally, Gneuss has developed the new Jump system. This is installed directly downstream of the Gneuss Processing Unit and thanks to its ingenious process ensures an accurate and controllable IV boost of the PET by up to 0,3 in the melt phase. The Jump system is a compact, quick and efficient alternative to conventional SSP (solid state) systems and enables direct reintroduction of the polymer into the production process without the need to remelt the PET.
Depending on its properties, industrial waste is first fed through a shredder or a knife mill until the size is reduced so that it can be fed into the extruder. This can mean either compaction of the size reduced waste or a crammer feeder fitted directly to the extruder.
The first important processing stage: melt decontamination takes place in the extruder. With its enormous devolatilisation capacity, the MRS extruder can process PET waste with high residual moisture levels and/or contamination (such as spin finish oils) without the need for any pre-treatment of the waste. In the Multi Rotation (MRS) section of the extruder a huge polymer surface area and extremely rapid surface exchange rate under vacuum ensure that all these volatile contaminants are reliably extracted. Solid contamination is extracted with the fully-automatic and process-constant Gneuss Rotary Melt Filtration System. With filtration finenesses of down to 20 µm and below, a pure and particle – free polymer melt is guaranteed.
Subsequently, the purified and homogenised polymer is fed by means of a melt pump into the Jump, where the second important stage of the process takes place. Here, too a large surface area of the polymer melt and optimum residence time of the polymer under vacuum are decisive factors. The polymer melt is kept under vacuum as it passes over slowly rotating elements. Through control of the residence time and the speed of the rotating elements, controlled polycondensation takes place whereby controlled IV boosting takes place of typically 0,02 to maximum 0,3 dl/g. The design of the Jump system avoids the ingress of oxygen so that the yellowing effect encountered during the recycling of PET is reduced to an absolute minimum. After the PET melt has passed through a stilling chamber in the Jump system, the polymer is pumped directly into the production process (for example direct extrusion spinning, strapping) or to a pelletising (chip cutting) system. With the complete system consisting of the Gneuss Procecssing Unit with the MRS Extruder and a Jump system, industrial waste can be quickly and efficiently reprocessed in one processing step to a high quality polymer melt which can be directly processed to a finished product. The Jump system is available for different capacities of between 100 and 2.000 kg/h.

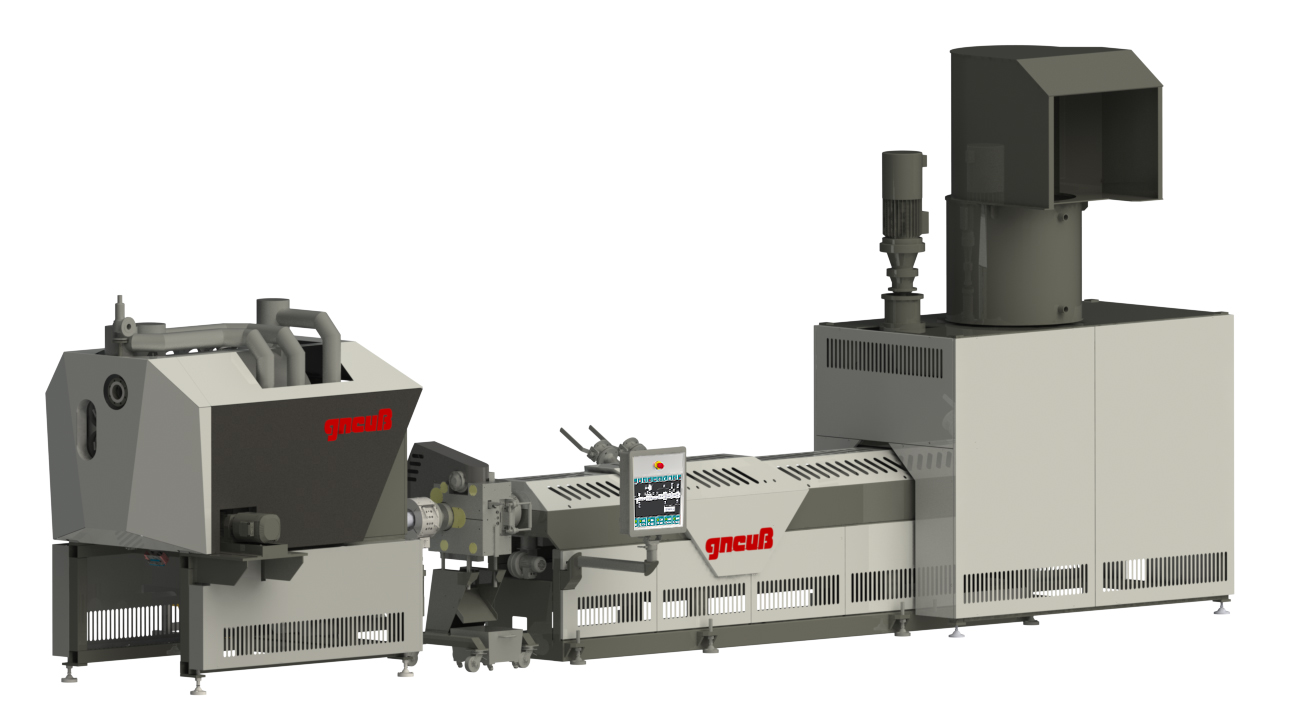

At the “K”, Gneuss will show an MRS 90i for a throughput rate of 400 kg/h, for industrial waste recycling with intermediate material buffer, auger and crammer/feeder. The extruder is coupled to the new Jump system, model V600.
Optimisation of polyamide processing with MRS technology
Nylon applications for the MRS-Extruder
Nylon fibre waste also occurs as bulky, contaminated industrial waste from fibre production and the MRS90i as exhibited by Gneuss is ideally suited for reprocessing this material. The MRS technology enables the efficient extraction of volatiles which disturb the process and/or properties of the material such as spin finish oils and can even be used to extract caprolactam (which can be recovered in a further processing step) from nylon.
Depending on the processing requirements, Gneuss offers special vacuum systems which operate at vacuum levels below 1 mbar.
The polyamide treated in this way can either be pelletised with a chip cutter or extruded direct to a final product such as carpet yarn (BCF), POY, film or other products. Direct processing offers major energy (cost) savings.
At the “K”, Gneuss will show their MRS 130 extruder for processing 900 kg/h of nylon or 1.000 kg/h of PET.
Fully automatic Rotary Filtration Systems with integrated back-flushing for the widest range of different applications
Gneuss Kunststofftechnik GmbH from Bad Oeynhausen (Germany) will present a number of modified Filtration Systems, focussing on self-cleaning (backflushing).
The highlight among the Filtration Systems on the Gneuss stand is the RSFgenius 330 which is the second largest Filtration System in the Gneuss range. The unit on display is destined for a BOPET line in Asia where it will operate with a filtration fineness of 20 µm. The patented RSFgenius Filtration Systems operate fully-automatically, process and pressure-constant and with a back-flushing system with unmatched efficiency. They are therefore especially suitable for demanding applications with high quality requirements.
An additional fully automatic Rotary Filtration System RSFgenius, type RSFgenius 175 will be exhibited, together with a process-constant automatic filtration system SFXmagnus 150 and an SFXmagnus 90 R with integrated back-flushing. The SFXmagnus range of automatic screen changers is characterised by an extremely large active area in a compact unit. This range of screen changers is available with or without an integrated back-flushing piston depending on the exact requirements of the process.
Both the RSFgenius as well as the SFXmagnus ranges have been completely revised during 2016. Modifications to the screen changer housings permit operation on a wider range of applications at higher pressures, whilst offering enlarged active filtration areas. Components and modules have been commonised between the two ranges in order to offer even more attractive value for money and shorter delivery lead times.
New for PVC processing is the SFpvc R, a further development of the SFpvc which was premiered at the last “K” 3 years ago. Both models are designed specifically for challenging PVC recycling applications but the new SFpvc R offers for the first time an integrated self – cleaning (back flushing) system whilst maintaining absolute process – constant operation.
Last but by no means least, Gneuss will exhibit a KF 75 screen changer at the “K”. The KF range of continuous Rotary Disc Filtration Systems is designed specifically for applications with frequent material type, grade or colour changes. The KF screen changers are especially compact and offer excellent value for money. They permit simple and quick screen changes on the fly.
The matching sensor for every application
Gneuss offers individually tailor- made melt pressure and melt temperature sensors even outside of the typical market standards.
- Highest quality, short delivery times: even for individual, tailor-made sensors.
As a machinery manufacturer, Gneuss has the manufacturing capabilities to realise even unusual sensor requirements. The lean manufacturing structure at Gneuss makes this possible with shortest delivery times. Gneuss sensors are available to match regional or application – specific requirements such as Atex, Hart Communication or EAC.
- Pressure overload protection: reliable and norm-compliant.
The new DAIL melt pressure transducer range from Gneuss is a special addition to the range, specifically for pressure overload protection. Whether as an economic single sensor system for standard applications or a complete system solution for explosion hazard environments, Gneuss has a pressure monitoring system for every application.
- Mercury–free for all temperature ranges.
In addition to the well – proven NTXTM sensors, Gneuss has added a newly developed range of sensors with a mercury- free medium for process temperatures of up to 500°C.
- Future-proof digital communication
Industry 4.0 needs intelligent sensor technologies. Gneuss is developing sensors which exchange process and diagnostic data with control systems via digital interfaces. The results: shorter conversion times and shorter production stoppages.
Photos: Gneuss Kunststofftechnik
