(Photo credit: Youtube/Eragold Singapore)

New plant

Kulen Spring invests in SMI plant for bottling water in PET containers

SMI S.p.A. San Giovanni Bianco BG, Italy

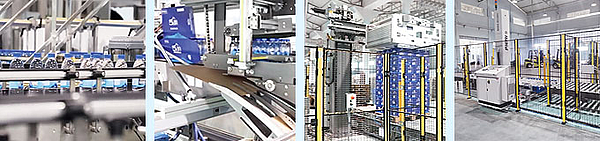

Kulen Spring Co. invested in a 31,800 bottles/hour plant of the latest generation supplied by SMI for bottling Elan and Eragold water in PET containers. The new line includes a stretch-blow moulding, filling and capping system from the ECOBLOC® ERGON range, a wrap-around cardboard packer from the LWP ERGON range, an automatic palletizing system from the APS ERGON range and conveyors for handling loose bottles and packs.

Advertisement
OttoSystems_04_23

The attention of Kulen Spring Co. towards the environment pushes the company to continuous investments to preserve the surrounding environment, use only energy from renewable sources and adopt sophisticated plants and equipment that preserve the quality of the water and ensure a higher production efficiency.

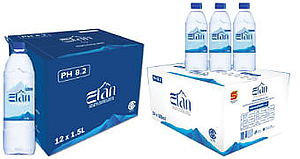

The growing demand for Elan water, rich in precious natural minerals, made necessary to increase production capacities of the Banteay Srei District, which is located near the archeological site of Angkor Wat and Kulen National Park. The recent supply of SMI has allowed the Cambodian company to automate the whole bottling and packaging process of the 31,800 bottles/hour line to produce 0.5 L and 1.5 L PET bottles.

SMI and SMI ASIA branch have supported Kulen Spring in the design, construction and installation phases of a turn-key line, with the presence of machines of the latest generation:

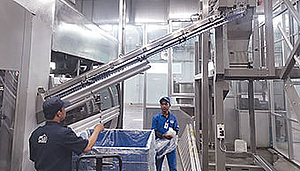

ECOBLOC® ERGON 16-48-18 E EV INTEGRATED SYSTEM

Functions: stretch-blow moulding, filling and capping of 0.5 L and 1.5 L of flat water in PET bottles with a production capacity up to 31,800 bottles/hour (0.5 L format).

  • compact structure that groups the stretch-blow moulding, filling and capping operations of PET bottles and does not require the rinser and the air conveyors between the blow moulder and the filler
  • flexible solution
  • reduced energy consumption
  • the preform heating module mounts energy-efficient IR lamps
  • the stretch-blow moulding module is equipped with a double-stage air recovery system, that allows to reduce the energy costs related to the production of high-pressure compressed air.

APS 1570 ERGON AUTOMATIC PALLETIZING SYSTEM

  • single-column system with two Cartesian axes, extremely flexible and easily adaptable to the logistical conditions of the end-of-line area
  • system suitable for palletizing boxes, bundles, trays and packs in general, consisting of different modules that can be configured in a personalized way
  • reduced maintenance costs and low energy consumption, thanks to the mechanical simplicity of the machine and the use of robotics
  • extremely simple automation and management control, thanks to the intuitive human-machine interface.
