Packaging in wrap-around cases

2018-01-17 0:52 min Other downstream equipment

SMI S.p.A. San Giovanni Bianco (BG), Italy

Packaging in wrap-around cases is the ideal solution for a shock-resistant package and for maintaining the product integrity during the transportation.

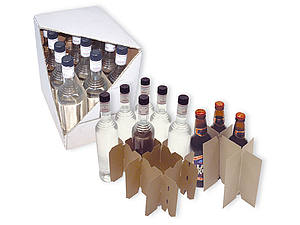

In order to further protect fragile containers, such as glass containers, the installation of the PID (Partition Inserting Device) is recommended as it inserts stretched board pre-assembled partitions into cardboard boxes.

This device can be installed on SMI WP and CWP case packers and on the CM combined packers.

The PED functioning

The PID and the partitions magazine are placed on top of the pack-forming section

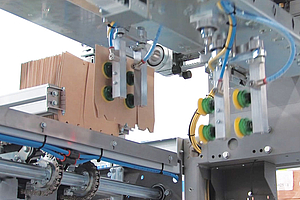

A mechanical arm equipped with vacuum suckers picks a stretched board pre-assembled partition from the partitions magazine, opens it and sets it between the underlying containers, before that these ones are grouped according to the desired pack configuration
The PID maximum operating speed is 40 packs/minute (1-head model) or 60 packs/minute (2-head model).

Some accessory advantages

High operational flexibility
No collisions between the blank and the product
Maximum efficiency of the marketing product
Compact solution: the PID is mounted on top of the machine, thus without changing the overall machine dimensions
Fast insertion of the partitions since these are pre-assembled

www.smigroup.it
